Model No.︰TMP-70100

Brand Name︰Tamprinter

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 set

Inquire Now

Product Description


Semi Work video:
https://youtu.be/0t3mcGgDmAI
https://youtu.be/EbHi7yVJyh0
https://youtu.be/nHgEUuxKpk8
https://youtu.be/_8ARcMfjFrc

Auto work video
With normal uv tunnel run to left
https://www.youtube.com/watch?v=REWl8zH-2Ik
With normal uv tunnel run to right
https://www.youtube.com/watch?v=_LHgMCYg-ks
https://www.youtube.com/watch?v=3bpxVNTvWF0
with led uv tunnel
https://youtu.be/6NGKTmtbf-w
with conveyor line run to left
https://www.youtube.com/watch?v=lsC3sVF322E

big type printer with Automatic glitter powder spill machine test video
https://youtu.be/_efN9mhuo7Q

operating instructions
http://doc.diytrade.com/docdvr/1963483/44230052/1443790819.pdf
PIC
http://doc.diytrade.com/docdvr/1963483/45122367/1463122264.pdf



Model No. TMP-6090 TMP-70100 TMP-90120
Size of worktable (mm) 720X1000 800X1100 1000X1300
Max printing area (mm) 600X900 700X1000 900X1200
Max frame (mm) 900X1200 1000X1300 1200X1500
Min frame (mm) 450X550 550X650 650X700
Substrate thickness (mm) 0-20   0-20   0-20
Printing speed (pcs/h) 500-1200 500-1000 400-900
Working pressure(Mpa) 0.3-0.5 0.3-0.5 0.3-0.5
Air consumption 0.6Mpa 13L/pcs 13L/pcs 13L/pcs
Height worktable to ground 820mm 820mm 820mm
Dimensions(LXWXH)m 1.55X1.15X1.46m  1.8X1.37X1.5m  1.95X1.55X1.55m
CBM 3.9CBM 4.1CBM 4.7CBM
weight 456kg 480kg 550kg
voltage /single phase 220V 50Hz 220V 50Hz 220V 50Hz
power 2.3kw 3kw 3.7kw



Application:

Flat Screen Printer of this series is widely used in the packaging industry (cigarette packaging, wine packaging, gift packaging and other card paper printing) trademark, calendar, oil painting, computer keyboards, paintings, iron-on transfers, credit cards, stickers, printing; also suitable for the printing of the electronics industry.



Features:

(1). Printing machine is driven by motor drive, which is belt drive, sensitive, balanced speed, speed adjustable.
(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.

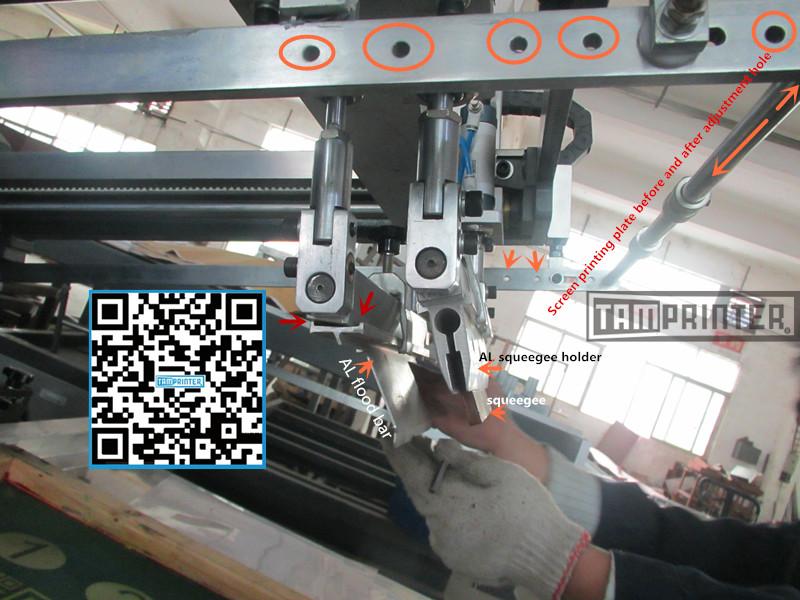

(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.
(4). Vacuum adsorption fixed printing pieces.
(5). The printing plate has up and down, left and right, before and after tuning device, which makes it  works accurate and convenient on board.
(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.
(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.

Screen printing is a printing technique whereby a mesh is used to transfer ink onto a substrate, except in areas made impermeable to the ink by a blocking stencil. A blade or squeegee is moved across the screen to fill the open mesh apertures with ink, and a reverse stroke then causes the screen to touch the substrate momentarily along a line of contact. This causes the ink to wet the substrate and be pulled out of the mesh apertures as the screen springs back after the blade has passed.

Hot tags: manual screen printing machine

Related auxiliary equipment: 25kw UV tunnel dryer for Glitter powder coating and uv glue coating
