Membrane Switch auto uv Screen Printing machine

Model No.︰

TAM-Z2

Brand Name︰

Tamprinter

Country of Origin︰

China

Unit Price︰

US $ 17000 / set

Minimum Order︰

1 set

Share on:

Product Description

TAM-Z2 Automatic Membrane Switch Screen Printing Set

Plate Type: Screen Printer

Condition: New

Place of Origin: Shenzhen, China (Mainland)

Brand Name: Tamprinter

Model Number: TAM-Z2

Usage: membrane switch, sheet metal, plastic etc.

Automatic Grade: Fully Automatic

Color & Page: Single Color

Certification:  CE

Warranty: 1.5year

After-sales Service Provided:

Engineers available to service machinery overseas

Packaging: plywood

Delivery Detail: Within 30 days after order confirmation

Video Link:

http://v.youku.com/v_show/id_XMTg1ODIwMzY1Ng==.html

https://youtu.be/VIo4ylngVFU

Technical parameters:

Item

Description

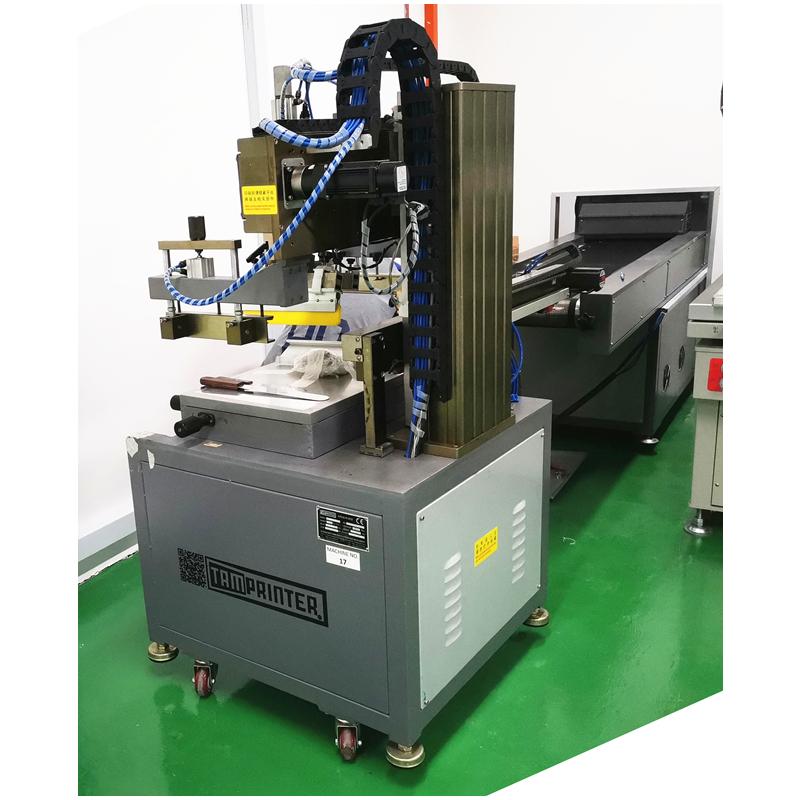

TM-3045Z Vertical screen printer with

robot arm



Worktable area: 400X450mm

Max printing area: 300X450mm

Max screen fame size : 550X720mm

Substrate thickness (mm):less than 40mm

Printing speed (pcs/h):900

Working pressure(Mpa):4.0-6.0

Machine size(mm): 980X820X1580mm

2CBM

weight:280kg

Rated voltage(P/V/Hz) 3/380/50

Source power: 380V/1.5kw

Free fitting

clamp 300mm--1pcs,tinge 320mm---1pcs;

clamp 450--1pcs,tinge 470mm--1pcs.

Tool box

TM-UV400-L varnish Machine



Conveyorbelt width(mm) 380

Effective range (mm) 400

Max thickness of cured (mm) 40

Conveyor speed (m) 2~20

Power(P/V/Hz) 3/380/50

UV lamp(KW/2pcs)5.6

Driving power(W) 60

Total power(KW) 13

Dimension(L*W*H) 4200*700*1200

5.2CBM

Weight(kg) 350

Free fitting

-  1 X speed regulator

Collecting device



Performance & Features

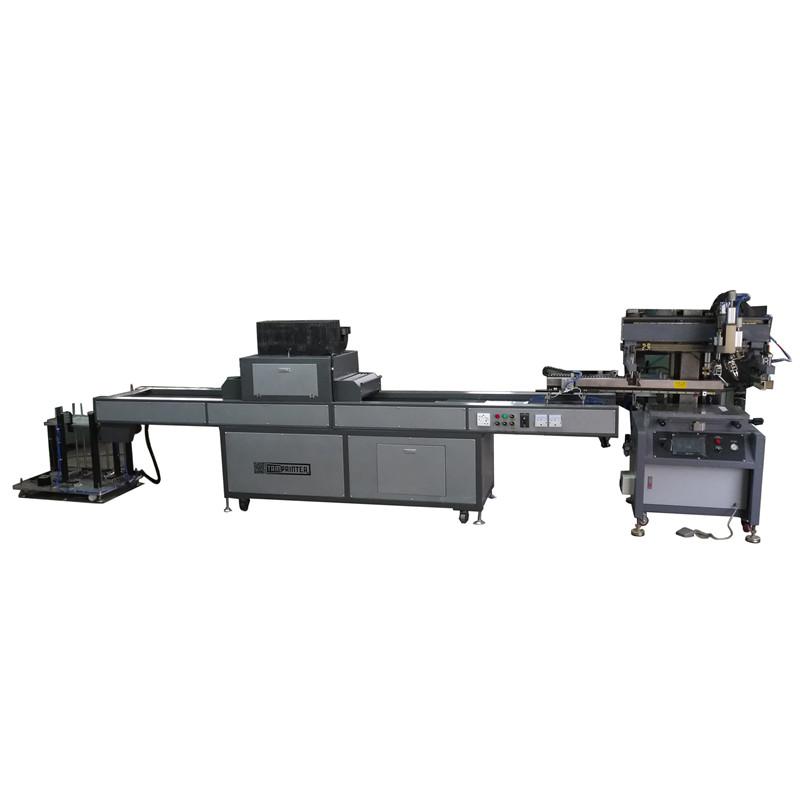

1. This line is composed of vertical screen printer, UV dryer and collecting device.

2. It is a fully automatic production line which takes off material automatically.

3. After printing finished, robot arm will suck and pull out the printing material, then send it to next working procedure (drying and products collecting).

4. It can not only save human labor, but also improve working efficiency of printing machines.

5. It applies to printing on membrane switch, sheet metal, plastic, plastic film etc.



Tamprinter Printing Machinery is  one of the largest fully automatic membrane switch screen printing set manufacturers and suppliers in China.when you placing an order, equipped with a professional factory, we can offer you  fully automatic membrane switch screen printing set with high precision and reliable performance in short time.  Welcome to buy our high quality equipment and experience our customized service.
