Membrane switch industry LED uv printing low temperature curing furnace

Model No.︰


Brand Name︰


Country of Origin︰


Unit Price︰

US $ 4500 / SET

Minimum Order︰


Share on:

Product Description

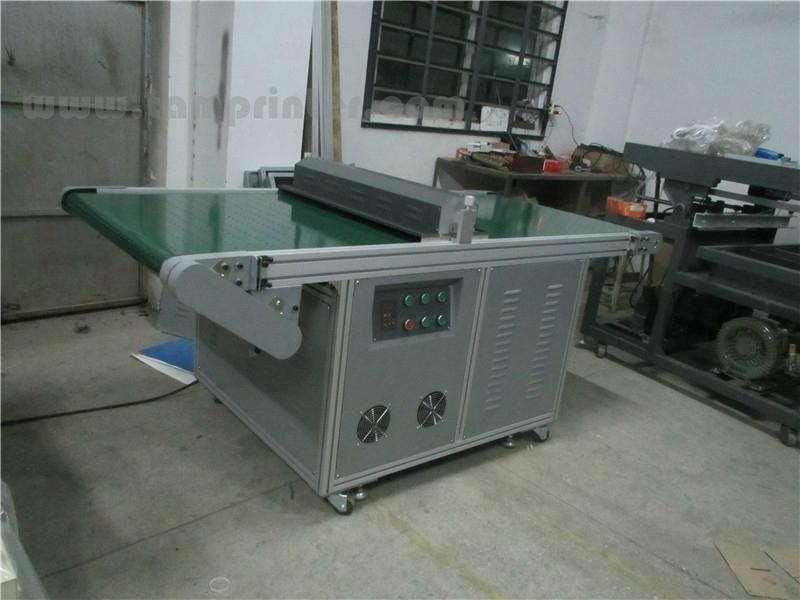

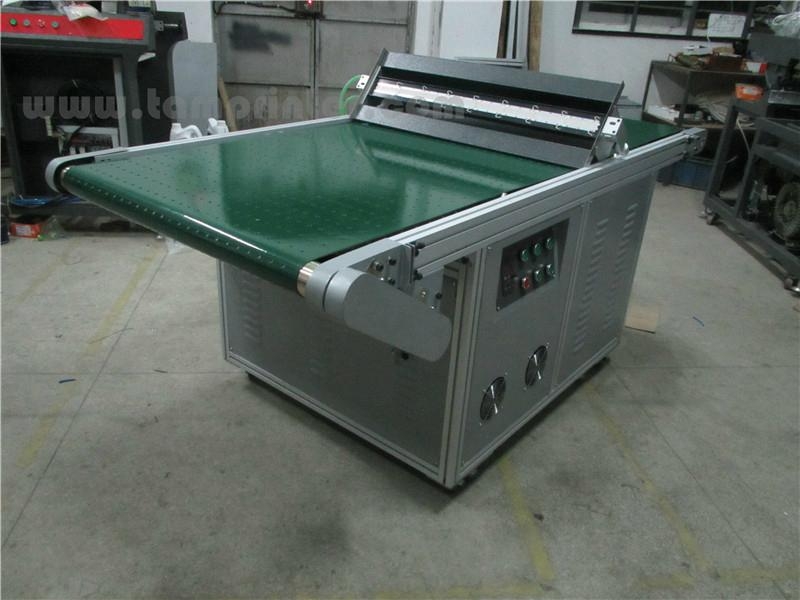

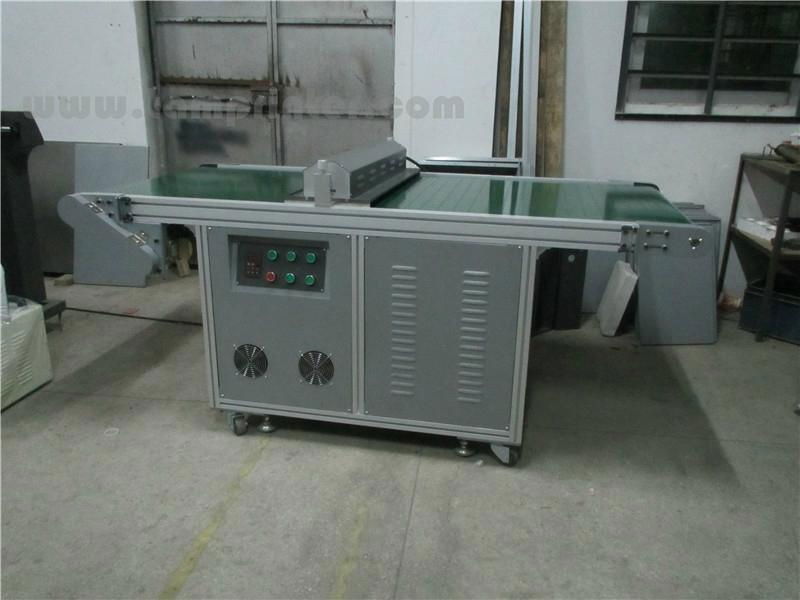

TM-LED800  LED UV drying machine



Product specifications:
The input voltage: AC220-240 - v
The cooling way: forced water cooling
Water-cooled machine size: 470 mm * 260 mm * 260 mm wide
PVC belt W800mm
size: 2*0.98*1.1m Plywood Package about 3.3CBM
Wire and pipe size: 5 m
Import of vertical structure light source: the Taiwan chip, quartz lens encapsulation, 120-200 - w, small size, high power, fast curing
UV LED band: 365 nm, 395 nm
UV LED light intensity:
365 nm (1200 mw/cm2-1600 mw/cm2)
395 nm (2800 mw/cm2-3600 mw/cm2)
Effective radiation area: 75 mm * 25 mm
Warranty: two years warranty

Control mode:
A key switch: to control the light output on/off.
Adjustable power set: UV energy using the infinite set arbitrary between 0-100%.
Intelligent protection: intelligent temperature and water flow cut-off alarm protection, temperature alarm value can be set, and water power.
UV LED light source characteristics:
1. No solvent - the greenhouse effect.
2. Conducive to environmental protection.
3. The work sites and no pollution.
4. Quick production.
5. Room temperature curing.
6. Product has unique properties.
7. To save energy.
8. Easy to wash.
9. Save space.
10. High gloss.
11. Less waste.
12. Method diversity, adaptability, product replacement fast.
While traditional mercury lamp calorific value is big, need special exhaust system, and the curing of heat sensitive material application is restricted.Light intensity on mercury lamp (point or bar) as the center showed a trend of decreasing step by step, uneven illumination, lead to products not consistency, reduce product percent of pass.
UV LED curing machine advantage:
At present most domestic manufacturers still use the traditional UV mercury lamp to work, but will instead of mercury lamp, UV LED because he has too many advantages than traditional mercury lamp!
1, long life: life is a traditional mercury lamp of type of curing machine more than 10 times, about 25000-30000 hours.
2, cold light source, no radiation, according to the product surface of low temperature, heat damage to solve the long existing in optical communication, LCD production problems. Especially suitable for LCD sealing side requiring small temperature, film printing and so on.
3, calorific value is small, can solve the great calorific value of mercury lamp spray equipment and personnel intolerable.
4, instant light, do not need to preheat immediately reached 100% uv output power.
5, life is not affected by the number of open and close.
6, high energy, light output stability, uniform irradiation effect is good, improve production efficiency.
7, can be customized effective radiation area, from 20 mm to 1000 mm in length.
8, do not contain mercury, also won't produce ozone, replacement of traditional light source technology is a safer, more environmentally friendly option.
9, low energy consumption, power consumption is only 10% of the traditional mercury lamp type curing press, can save 90% energy.
10, maintenance cost is almost zero, use UVLED curing equipment to save at least 10000 yuan a year/material fee.


hot tags:Uv Led Printer

Payment Terms︰ TT/LC/ Western Union
