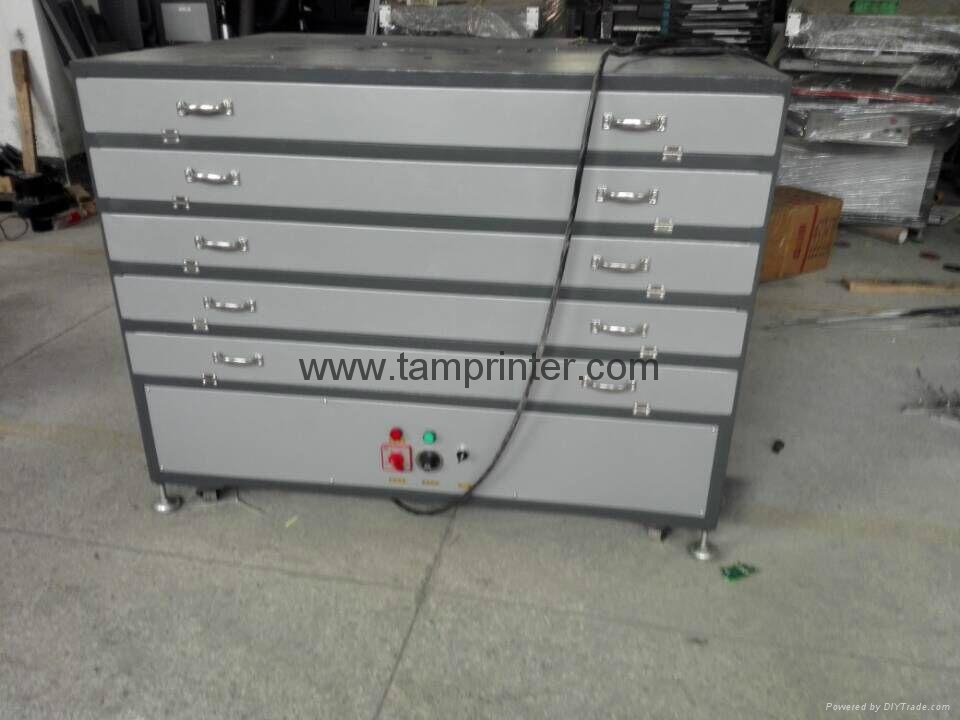

TDP-70100 drying cabinet for screens when coated with emulsion
Stencil dryerFit for TMP-70100 screen printer
MOLDE
TDP-70100
TDP-6090
TDP-90120
TDP-12140
MAX PLATE SIZE(mm)
900*1200
800*1000
1100*1400
1400*1600
power(v/hz)
380/50 or 20/50
380/50 or 220/50
380/50 or 20/50
380/50 or 20/50
power(kw)
4*1kw
4*1kw
5*1kw
6*1kw
Heating pipe
stainless steel
stainless steel
stainless steel
stainless steel
Temprature
0~200deg
0~200deg
0~200deg
0~200deg
Timer
0.5~2 H
0.5~2 H
0.5~2 H
0.5~2 H
machine size
1500*1200*1100
1400*1100*1100
1400*1700*1100
1700*1900*1100
weight
150kg
100kg
200kg
250kg
plywood
about 3.1 CBM
about 2 CBM
about 4 CBM
about 4.2 CBM
1)emulsion dryer for the mesh that device to create a gridApplicable Scope and advantage
Screen printing drying cabinet is applied to drying the screen plate.
This drying cabinet inside installed axial flow fan makes the hot air in circulation, which guarantees an equal temp in cabinet and can improve drying efficiency meanwhile The axial flow fan can normally be used for about 20,000 hours. It usually takes 2~4 minutes to well dry the screens coated with the photosensitive emulsion
2)Feature:
1,Hot air circulation system ensure constant temperature,save energy, compared with traditional 7000~8000W drying cabinet, this equipment can save power 3%~4% .
2,CNC control system ,make the operation easily.
3,The specification could be made as customers requirement
