Automatic adhesive powdering machine for apparel trademark
Video: https://youtu.be/ofG-0ApB25o

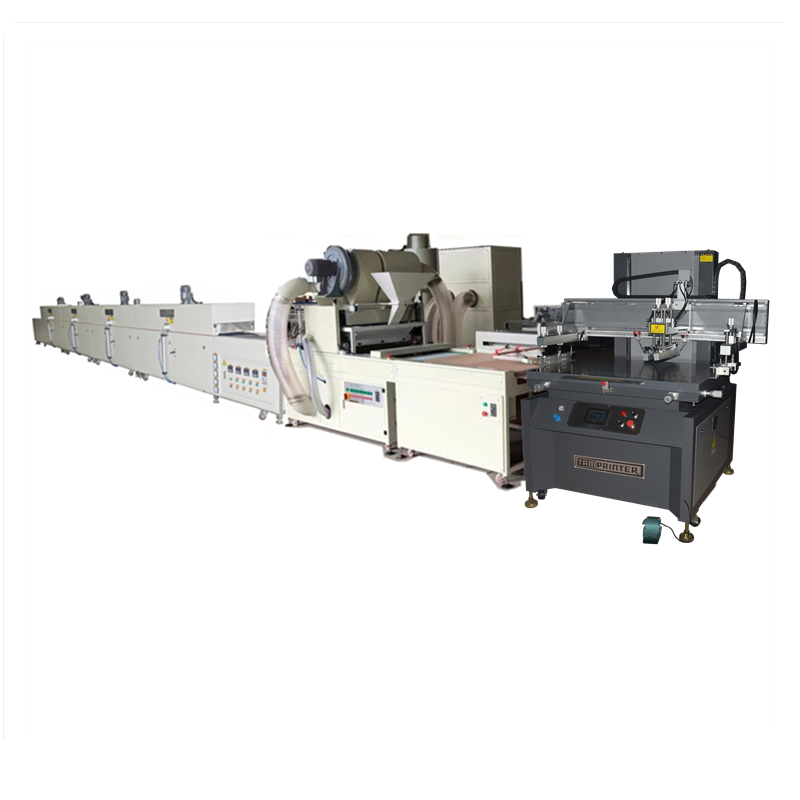

It has the functions of removing static electricity, dusting, recycling powder, recycling dusting, and it is convenient to use, flexible and high efficiency, no dust pollution. All the transmission parts of the whole machine can realize direct connection with automatic screen printing mach , which can achieve the perfect effect on paper, film, wallpaper and so on. Can also be used with: the front screen printing machine, followed by docking drying rack into the oven or directly through the infrared tunnel furnace.
Adhesive powder applicator For Heat Transfer Film 8443911900 Technical parameter
| Model |
Total Power |
Belt Width |
Width of Powdering |
Thickness of Paper |
Overall Dimensions |
Plywood |
| TZSC-1 |
4KW
380v/220v |
800(mm) |
650(mm) |
0 ~ 5(mm) |
2010*1500*1860
580kg |
2.16*1.7*2.06m
750kg |
| TZSC-2 |
4KW
380v/220v |
1000(mm) |
900(mm) |
0 ~ 5(mm) |
2010*1700*1860 |
2.16*1.9*2.06m
850kg
|
| TZSC-3 |
5KW
380v/220v |
1250(mm) |
1100(mm) |
0 ~ 5(mm) |
2010*1950*1900 |
2.16*2.15*2.1m
960kg
|
Thickness of Paper Conventional 0.75mm The most commonly used model TZSC-1
Application
It is suitable for the hot melt powder process on the transfer products, such as the trademark of clothing, heat transfer, wallpaper, paper, film and other transfer products.
base work Principle
The top 2 drum is shaking powder bucket, you can control the size of the powder, because the original ink is not dry, natural stained with hot melt powder
Products Info.
The key parts of the machine such as conveyor belts, suction fans, frequency converters are imported components, for the upper and lower double-suction device, is designed for the film hot melt process characteristics of the design and production, easy to use, flexible adjustment, the whole machine The transmission body are stepless adjustment, with high durability, good stability characteristics.
Packaging
packing by wooden case usually, we also do other packaging as per customer's requirement.
Shipping
European Countries: 22-28 days
United States: East --13-16 days, West--21-28 days
Brazil: 30-40 days
Russia: 36 days
Asia Countries: 3-5days
RFQ
Q1:
What does this machine do?
A1:
The principle of HEAT transfer printing, hEAT PRESS, and hot stamping is to press the heating element on the transfer film to let the ink leave the film and form a LOGO on the product.
HEAT transfer film and heat PRESS paper are at least INCLUDE 3 layers,
The outermost plastic layer, it is waste AFTER complete the ink transfer work,
The ink layer is printed on the plastic film by single or multiple TIMES screen printing or offset printing
The innermost layer is the glue layer. After the hot melt adhesive heats up, it can take the ink away from the PLASTIC film and come to the surface of the product. After cooling, the ink sticks ON the surface of the product .
Then the job of Tamprinter Adhesive powder COATING machine is to remove static electricity from the product first, and then sprinkle finely divided hot melt adhesive on the thermal transfer film after printing. The ink is wet and sticky before drying, and can absorb hot melt powder. , and finally the excess hot-melt powder is recycled by the machine.

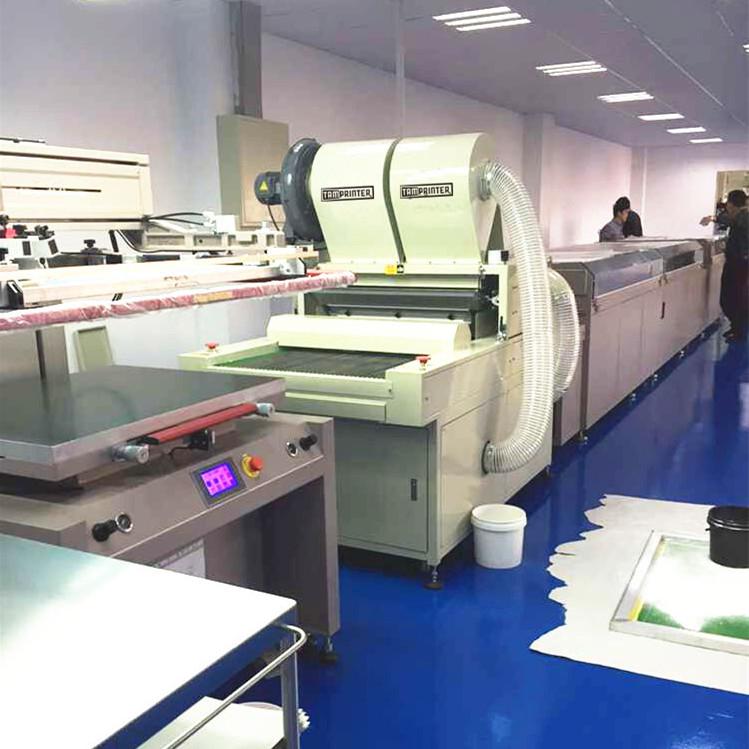

Docking behind this machine is usually a tunnel oven.
