Chinese T-shirts drying tunnel furnace factory

Model No.︰

TM-IR5825

Brand Name︰

Tamprinter

Country of Origin︰

China

Unit Price︰

US $ 8000 / SET

Minimum Order︰

1 SET

Share on:

Product Description

Chinese T-shirts drying tunnel furnace factory

CONVEYOR DRYER MODELSModel No-TM-IR 5825

IR tunnel HS CODE / NCM 8516609000

Parameter

Power/Specification

Remarks

Dryer Length

5.8 Meter



Dryer Width

1.25 Meter



Belt Width

1 Meter



Belt Type

Teflon Belt



In-feed

0.75 Meter



Out-feed

1.05 Meter

4 cooling fans on exit

Total Oven

2 Pcs



Total Oven Length

4 Meter



Each Oven Length

2 Meter

9 Tubes/ Oven

Total Tubes

18 Pcs



Tube Type

Ceramic



Tube Power

1000 W each



Working Power

3 Phase- 380V/50Hz



Belt Motor Power

90W- 5IK90RGU-CF

Brand- OTG/VTV- 220V/50Hz AC

Contactor

90 Amp- 2 Sets

Brand- Chint/Delixi

Temp Range

0- 250 Degree C



Temp Tolerance

+/- 5 Degree C





Model No-TM-IR 5845



Parameter

Power/Specification

Remarks

Dryer Length

5.8 Meter



Dryer Width

1.45 Meter



Belt Width

1.2 Meter



Belt Type

Teflon Belt



In-feed

0.75 Meter



Out-feed

1.05 Meter

4 cooling fans on exit

Total Oven

2 Pcs



Total Oven Length

4 Meter



Each Oven Length

2 Meter

9 Tubes/ Oven

Total Tubes

18 Pcs



Tube Type

Ceramic



Tube Power

1300 W each



Working Power

3 Phase- 380V/50Hz



Belt Motor Power

90W- 5IK90RGU-CF

Brand- OTG/VTV- 220V/50Hz AC

Contactor

90 Amp- 2 Sets

Brand- Chint/Delixi

Temp Range

0- 250 Degree C



Temp Tolerance

+/- 5 Degree C





Model No-TM-IR 6625



Parameter

Power/Specification

Remarks

Dryer Length

6.6 Meter



Dryer Width

1.25 Meter



Belt Width

1 Meter



Belt Type

Teflon Belt



In-feed

0.75 Meter



Out-feed

1.05 Meter

4 cooling fans on exit

Total Oven

2 Pcs



Total Oven Length

4.8 Meter



Each Oven Length

2.4 Meter

11 Tubes/ Oven

Total Tubes

22 Pcs



Tube Type

Ceramic



Tube Power

1000 W each



Working Power

3 Phase- 380V/50Hz



Belt Motor Power

90W- 5IK90RGU-CF

Brand- OTG/VTV- 220V/50Hz AC

Contactor

90 Amp- 2 Sets

Brand- Chint/Delixi

Temp Range

0- 250 Degree C



Temp Tolerance

+/- 5 Degree C



Model No-TM-IR 6645



Parameter

Power/Specification

Remarks

Dryer Length

6.6 Meter



Dryer Width

1.45 Meter



Belt Width

1.2 Meter



Belt Type

Teflon Belt



In-feed

0.75 Meter



Out-feed

1.05 Meter

4 cooling fans on exit

Total Oven

2 Pcs



Total Oven Length

4.8 Meter



Each Oven Length

2.4 Meter

11 Tubes/ Oven

Total Tubes

22 Pcs



Tube Type

Ceramic



Tube Power

1300 W each



Working Power

3 Phase- 380V/50Hz



Belt Motor Power

90W- 5IK90RGU-CF

Brand- OTG/VTV- 220V/50Hz AC

Contactor

90 Amp- 2 Sets

Brand- Chint/Delixi

Temp Range

0- 250 Degree C



Temp Tolerance

+/- 5 Degree C





Model No-TM-IR 7825



Parameter

Power/Specification

Remarks

Dryer Length

7.8 Meter



Dryer Width

1.25 Meter



Belt Width

1 Meter



Belt Type

Teflon Belt



In-feed

0.75 Meter



Out-feed

1.05 Meter

4 cooling fans on exit

Total Oven

3 Pcs



Total Oven Length

6 Meter



Each Oven Length

2 Meter

10 Tubes/ Oven

Total Tubes

30 Pcs



Tube Type

Ceramic



Tube Power

1000 W each



Working Power

3 Phase- 380V/50Hz



Belt Motor Power

120W- 5IK120RGU-CF

Brand- OTG/VTV- 220V/50Hz AC

Contactor

90 Amp- 3 Sets

Brand- Chint/Delixi

Temp Range

0- 250 Degree C



Temp Tolerance

+/- 5 Degree C





Model No-TM-IR 7845



Parameter

Power/Specification

Remarks

Dryer Length

7.8 Meter



Dryer Width

1.45 Meter



Belt Width

1.2 Meter



Belt Type

Teflon Belt



In-feed

0.75 Meter



Out-feed

1.05 Meter

4 cooling fans on exit

Total Oven

3 Pcs



Total Oven Length

6 Meter



Each Oven Length

2 Meter

10 Tubes/ Oven

Total Tubes

30 Pcs



Tube Type

Ceramic



Tube Power

1300 W each



Working Power

3 Phase- 380V/50Hz



Belt Motor Power

120W- 5IK120RGU-CF

Brand- OTG/VTV- 220V/50Hz AC

Contactor

90 Amp- 3 Sets

Brand- Chint/Delixi

Temp Range

0- 250 Degree C



Temp Tolerance

+/- 5 Degree C





Common Remarks:



All Belt rollers/ belt adjustable rollers should be with best grade nickel

Each machine should have one MCCB inside of control panel

Each machine Belt Speed Control should be stable, noise free belt transmission

Each oven should be controlled by individual Temperature Control Unit



CONVEYOR DRYER MODELS

Model No

Unit Price

Set

5825

3600USD

5845

3733USD

6625

4133USD

6645

4267USD

7825

4933USD

7845

5067USD





hot tags: Paint Infrared Oven



Payment Terms︰ TT/LC/western union

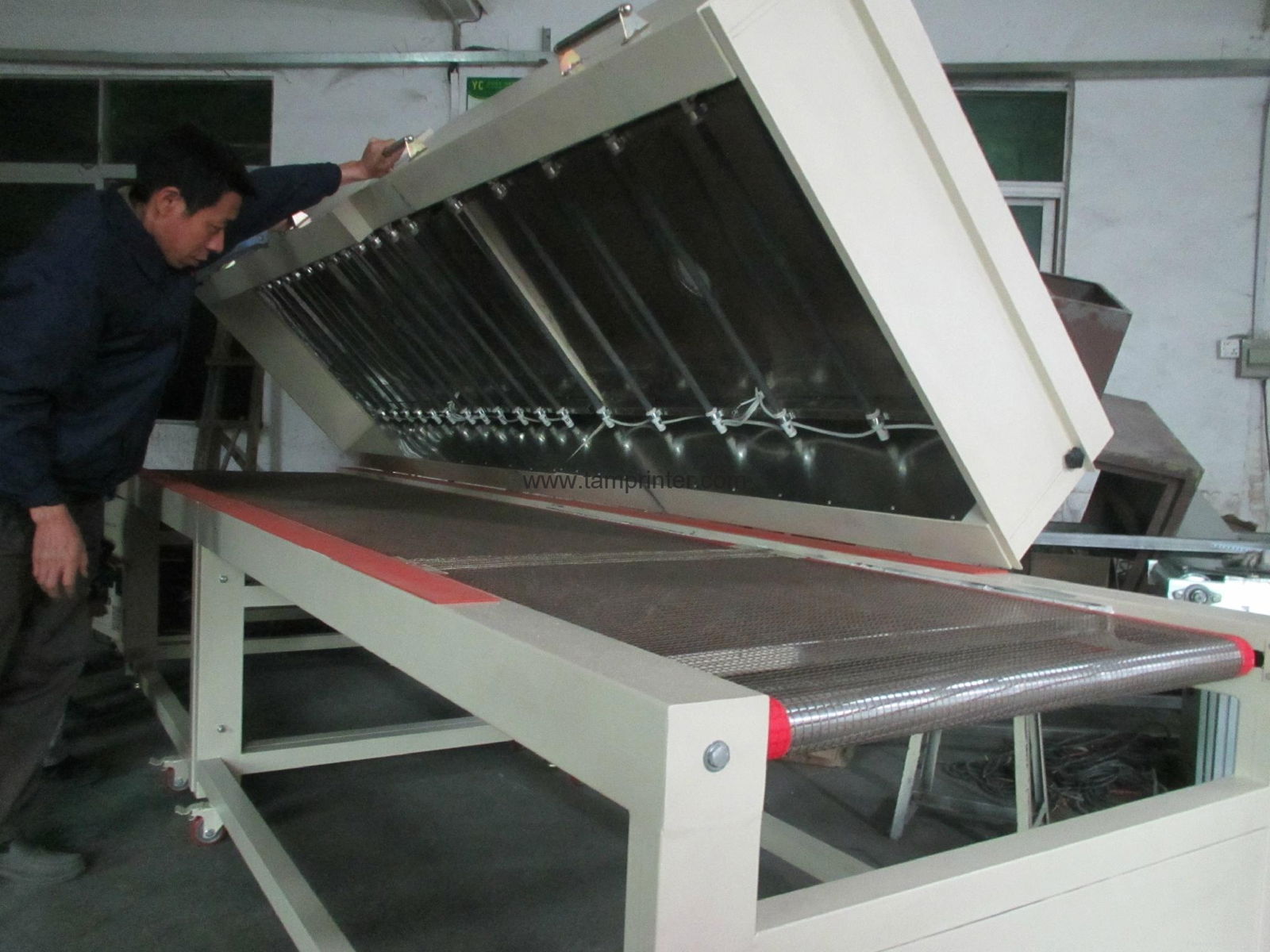

Product Image
