Product Description

TM-C2-P Two color pad printer with conveyor

 Technical parameter:

http://v.youku.com/v_show/id_XMTI1MzgxOTQyNA==.html



Max printing area	100X150
Max printing speed	2000pcs/h
Air consumption	104litre/min(6bar)
Power	110/220V   60/50Hz   50W
Dimensions	1220X670X1500(mm)
Weight	200kg
package	1.05*0.83*1.55=1.35CBM



3. High quality solid aluminum metal casting field, and the machine in a high firm structure.

 Machine features：

1. The machine's " S " convenient rocker hand, which can made in effect, printing effect greatly shortened machine commissioning and replacement ink and steel time. Shorted the time which used in adjust the machine and change the printing ink and plate.

2. The world top pneumatic components (cylinder: imported from Japan SMC), and stable performance.

4. Workbench design can achieve around position adjustment.

5. The open ink cup and oil cup design can be realized, and adjust position around small Angle adjustment and tilt.

6. Ink cup can reduce volatile and save the ink thinner the gentle, sealing oil cup system does not produce ink splashes and peculiar smell.

Urgent reminder

The temperature of shipping containers generally fluctuates between -25°C and 60°C, while the humidity is maintained at 60% to 90%. High temperature and salt spray have a great impact on photosensitive adhesive
The pre-coating adhesive of Steel plate will become ineffective after 45 days of sea transportation.
So must be shipped by express delivery  every time.The sooner the photosensitive adhesive is used, the better.
If the blank steel plate，There is no need to consider the expiration date

Three factors determine whether a steel plate will rust.
1. Material: We can only give customers what material they want according to the material they want. We do not mix inferior steel or re-grinded refurbished plates. We ship at wholesale prices.
2. Use environment: The environment is humid, it rains a lot, and the ink used is highly corrosive, which is a great test for the rust resistance of the steel plate.
3. Storage method: After use, be sure to wipe off the ink and chemicals on the steel plate, and then apply anti-rust oil, otherwise there is no difference between oiling and not applying anti-rust oil.
As a steel plate factory: What we can do is that customers give oiled steel to oiled steel, bearing steel to bearing steel, and re-grinded plates to re-grinded plates, but rust or not is not something we can decide. Many customers say why the steel plate is prone to rust recently. We analyze from three aspects: material, use environment, and storage method to find the problem. I hope it can help you!

hot tags: Bakery Equipment



Payment Terms︰ TT/LC/ Western Union

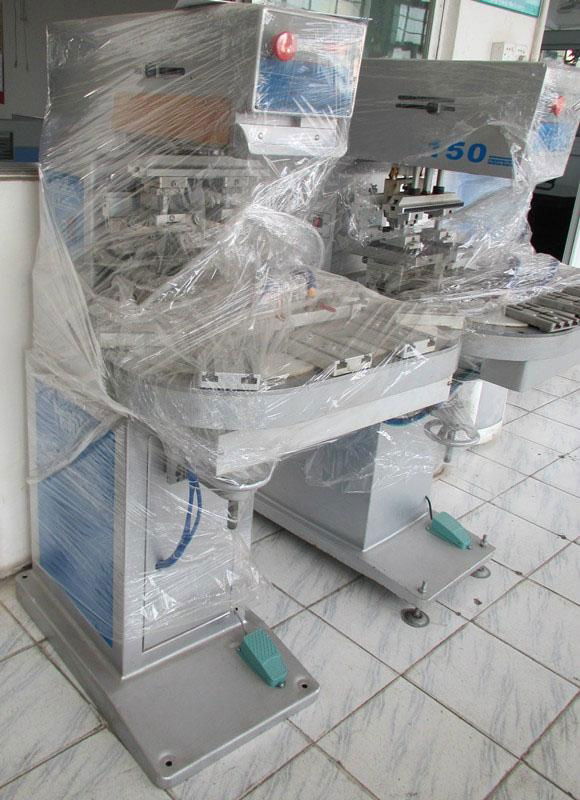

Product Image
